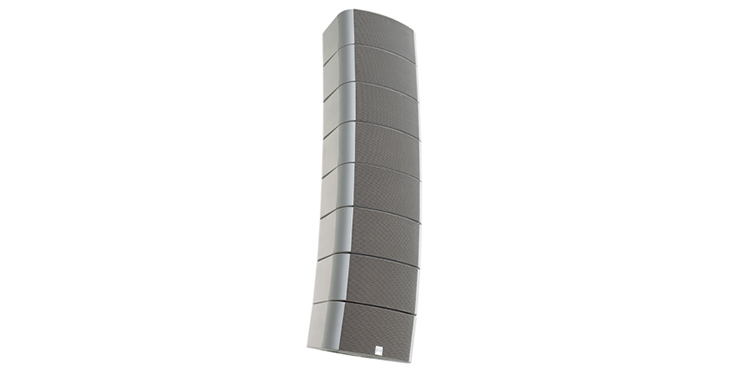

Martin Audio O-Line

O-Line delivers consistent audio coverage with unprecedented accuracy in a wide variety of architectural environments, using only one amplifier channel per array in many applications. By utilising a complement of unique, Martin Audio designed drivers, and mechanical alignment techniques, simple EQ and Limiting is the only processing required. A powerful software application provides extremely accurate intercabinet and array angles, in order to achieve optimum coverage over a predefined area. O-Line's aesthetically pleasing cabinet is finished in neutral light grey.

slide
  • Type: Two-way micro-line array module
  • Frequency Response: 85Hz-20kHz ± 3dB -10dB @ 76Hz
  • Drivers: 2 x 3.5" (87mm)/1" (25mm) voice coil LF drivers, 5 x 0.55" (14mm) soft dome tweeters
  • Rated Power: 50W AES, 200W peak
  • Recommended Amplifier: 100W-200W in to 16 ohms
  • Sensitivity: 84dB at LF rising to 92dB at HF
  • Max SPL: 104dB continuous, 110dB peak
  • Nominal Impedance: 16 ohms
  • Dispertion (-6dB):100º horizontal, 5º vertical
  • Crossover: 2.5 kHz passive
  • Dimensions: 246mm x 115mm x 198mm
  • Weight: 3.6kg
