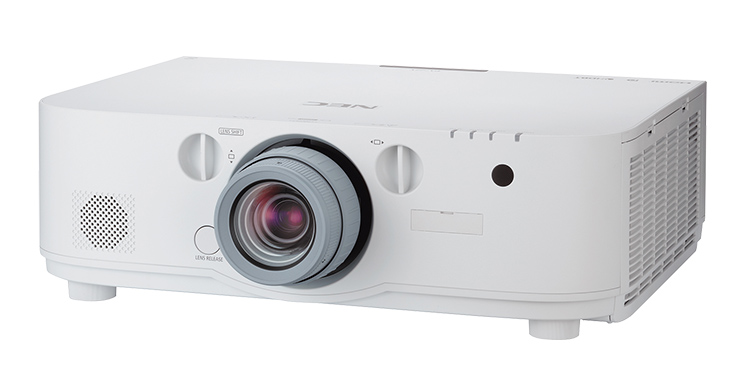

NEC PA622U

Delivering many unique features, NEC’s new PA Series was the world’s first projector range to offer a 4K interface for multi-screen display capability. Outstanding picture quality is guaranteed with NEC’s 3rd generation Sweetvision®, high brightness levels and NEC’s unique scaler chip.

The PA622U offers rich connectivity with a wide range of inputs and unrivalled installation capability making it ideal for corporates, higher education, museums and signage applications in large rooms and auditoriums.

slide
  • Projection System :3LCD Technology
  • Light Output: 6200 lumen, 4900 lumen (economy)
  • Resolution: WUXGA, 1920 x 1200, 16 : 10
  • Contrast Ratio: 6000 : 1
  • Lamp: 350W, 3000hr durability, 4000hr durability (economy mode)
  • Keystone Correction: Manual vertical: ± 30°, Manual horizontal ± 40°
  • Projection Ratio: 1.5 - 3.02 (Standard lens option)
  • Projection Lens F Number: 1.5 - 2
  • Connectivity: 2x HDMI, 1x 5BNC, 1x DisplayPort, 1x Mini D-sub 15 pin, 1x HDBaseT, 1x RS-232C, Stereo mini jack audio out, Stereo mini jack audio in (2x), Composite in, 1x Ethernet, 1x USB
  • Product dimensions: 499 x 359 x 142 mm
  • Product weight: 8.4 kg
  • Noisel: Normal: 39 dB(A) - Economy:33 dB(A)
